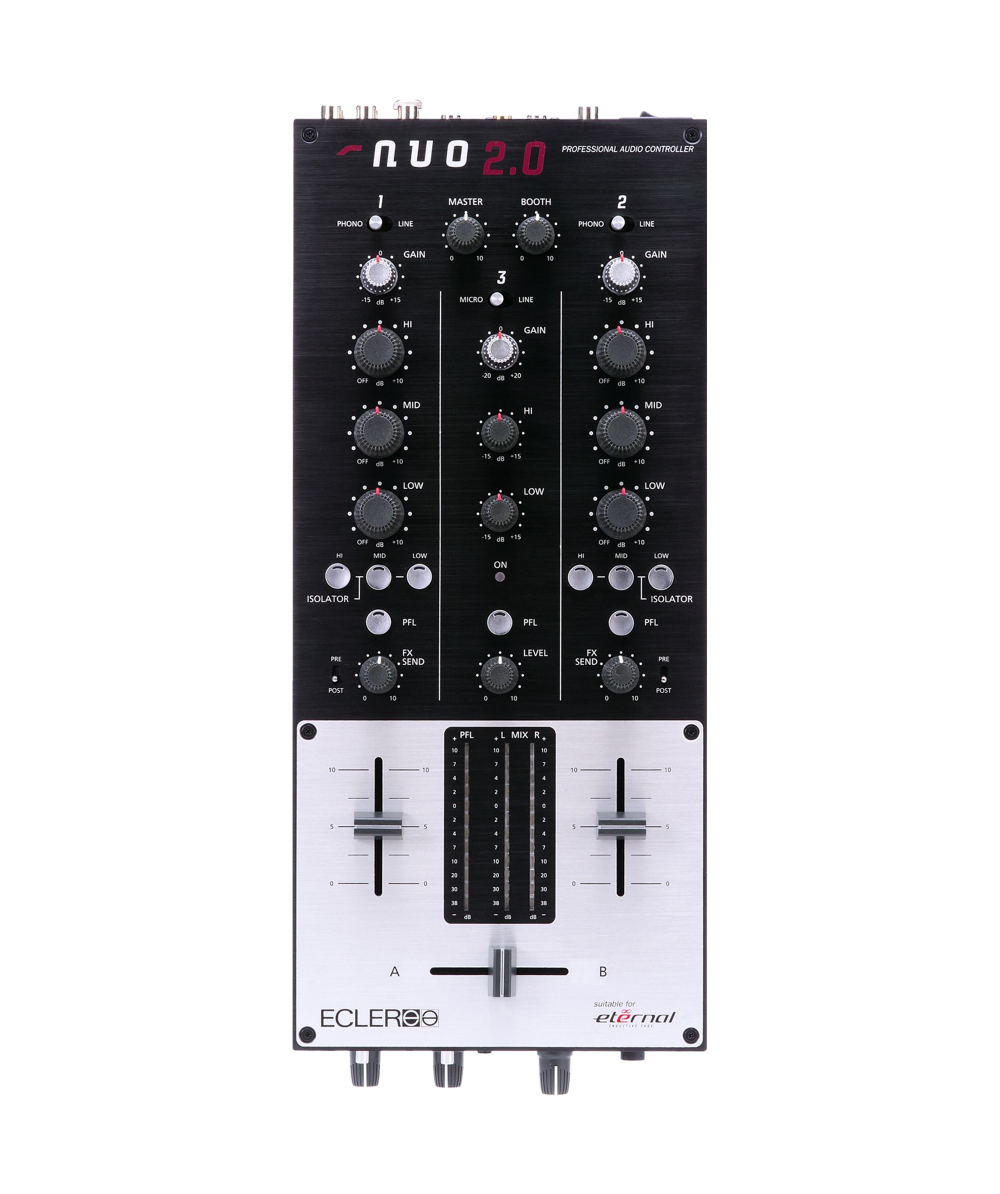

ECLER NUO2.0 - 2-Channel DJ Mixer

Availability: Only 2 Left

Regular Price: $969.99

Special Price: $749.99

Qty:
+ -

Regular Price: $969.99

Special Price: $749.99

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- Versatile 2-channel analogue mixer for all DJ styles
- Full-cut 3-band EQ with ergonomic, oversized knobs
- FX Send per channel with Pre/Post fader selector
- Long-life VCA faders with adjustable curve settings
- Compatible with magnetic ETERNAL crossfader for scratch DJs

Details

The NUO 2.0 is a 2 channel analogue mixer addressed to the professional DJ of any kind, in despite of the mixed music style

Key features:

  • 2 mixing channels
  • 1 MICRO/LINE channel
  • 2 PHONO inputs
  • 3 LINE inputs
  • Master output XLR and RCA
  • Booth output RCA
  • 3 band full cut EQ
  • Extra large ergonomic EQ knobs
  • 3 band EQ kill switches
  • FX Send control per channel
  • FX Pre/Post fader selector
  • 45mm long life VCA faders
  • 45mm long life VCA crossfader
  • Fader and crossfader shape adjustment
  • Crossfader Reverse and Cut-In
  • Crossfader suitable for ETERNAL

The NUO 2.0 is a 2 channel analogue mixer addressed to the profesional DJ of any kind, in despite of the music style. It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest Sound performance.

Whether you play house, techno or hip hop, perform smoothly or as a scratch DJ, the NUO 2.0 will please all your needs thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, FX Send control per channel in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ. Its superb sound quality and robust format, plus balanced XLR Master output and Booth output for monitoring make it also a perfect mixer for small installations.

specifications

Inputs Sensitivity nom/Impedance

LINE

0dBV/50kΩ



PHONO

-40dBV/50kΩ



MICRO

-50dBV/>1kΩ



FX RETURN

0dBV/>6kΩ

Outputs Level/Minimum Load

MASTER (BAL)

0dBV/600Ω 1V *(+6dB 2V)



MASTER (UNBAL)

0dBV/2.2kΩ 1V *(+6dB 2V)



BOOTH (UNBAL)

0dBV/2.2kΩ 1V *(+6dB 2V)



REC

0dBV/10kΩ



HEADPHONES

200mΩ/200Ω THD 1%



FX SEND

0dBV/2.2kΩ

Frequency Response

LINE

10Hz÷30kHz -1dB



MICRO

10Hz÷25kHz -1dB



PHONO

RIAA ±0.5dB



FX RETURN

10Hz÷50kHz -1dB

THD+N

LINE

<0.07%



MICRO

<0.1%



PHONO

<0.15%



FX RETURN

<0.05%

CMRR

MICRO

>70dB @ 1kHz

Signal Noise Ratio

LINE

>95dB



MICRO

>85dB



PHONO

>90dB



FX RETURN

>100dB

Gain control

INPUTS 1-2

± 15dB



INPUT 3

± 20dB

Tone control Inputs 1-2

BASS

+10/-30dB



MID

+10/-25dB



TREBLE

+10/-30dB

Tone control Input 3

BASS

± 15dB



TREBLE

± 15dB

Kill Filter, cut frequency at –6dB

BASS

200Hz



MID

200Hz÷6.8kHz



TREBLE

6.8kHz

Phantom voltage

+18VDC/5mA max.

Mains



90-264VAC 47-63Hz

Power consumption

30VA

Dimensions

370x165x80mm

Weight



3kg

what's included
  • ECLER NUO2.0
  • IEC Main Connector
  • First Steps Guide
  • Warranty card.
